Choosing between an axial fan and a centrifugal fan is one of the earliest and most consequential decisions in any air-moving system. Get it right and you minimize energy cost, noise, and maintenance. Get it wrong and you end up with a fan that either cannot reach the required static pressure or consumes far more power than necessary.

Operating Principle of Axial Fans

An axial fan moves air parallel to the impeller shaft. The blades force air forward along the axis of rotation, much like a propeller. Because the air path is straight and open, axial fans move very large volumes of air at low resistance. This makes the axial design the natural choice for high flow, low pressure fan applications such as ventilation, cooling, and general air exchange.

The practical limitation of a single-stage axial fan is pressure capability. In most atmospheric ventilation duties, an axial fan works economically at low-to-medium static pressures. If higher pressure is required, manufacturers such as SINDFAN offer contra-rotating mining units in which two staged impellers spin in opposite directions; these units can reach roughly 1000–3500 Pa of pressure while still delivering substantial flow.

Operating Principle of Centrifugal Fans

A centrifugal fan draws air into the impeller along the shaft axis, then spins it outward radially. The air changes direction 90 degrees and is collected in a volute casing, where its kinetic energy is converted into static pressure. This design is fundamental different: centrifugal fans are inherently better at building pressure, but they handle lower volumes for a given impeller diameter than axial fans of similar size.

That higher pressure comes at a price. The volute casing enlarges the overall footprint, the inlet and outlet ductwork must accommodate a right-angle turn, and the fan is generally heavier and more expensive to install than an axial fan moving the same volume of air. A centrifugal fan is justified when your ductwork, filters, or process equipment create resistance that an axial fan cannot overcome.

Axial vs Centrifugal Fan: Key Differences at a Glance

  • Flow direction: Axial fans pass air straight through; centrifugal fans discharge air radially after a 90-degree change in direction.
  • Pressure range: Axial fans suit low-to-medium static pressures; centrifugal fans excel where higher pressure is needed at reduced flow.
  • Flow rate: For the same wheel diameter and speed, axial fans move significantly more air.
  • Footprint: Axial fans are compact and can be installed directly in a duct or wall opening; centrifugal fans require a volute casing and occupy more floor space.
  • Efficiency and noise: Axial fans run with comparatively low noise at low pressures but can experience stall near their pressure limit; centrifugal fans have a steeper performance curve and are often specified where pressure conditions vary.

Choosing the Right Fan for Your System

Start with the duty point, not the fan. You need two numbers: the volume of air required and the total pressure your system must overcome (duct friction, filters, dampers, inlet hoods, and process resistance).

  • If your pressure requirement is modest and your flow requirement is high, an axial fan is the practical and economical solution.
  • If your system resistance is high and flow is comparatively limited, a centrifugal fan is the correct selection.
  • If space is tight and ductwork allows straight-through installation, axial offers a smaller footprint.
  • If you must discharge in a radial direction to suit existing ductwork, centrifugal avoids the need for an additional bend.

SINDFAN Axial Fan Range and Quality Assurance

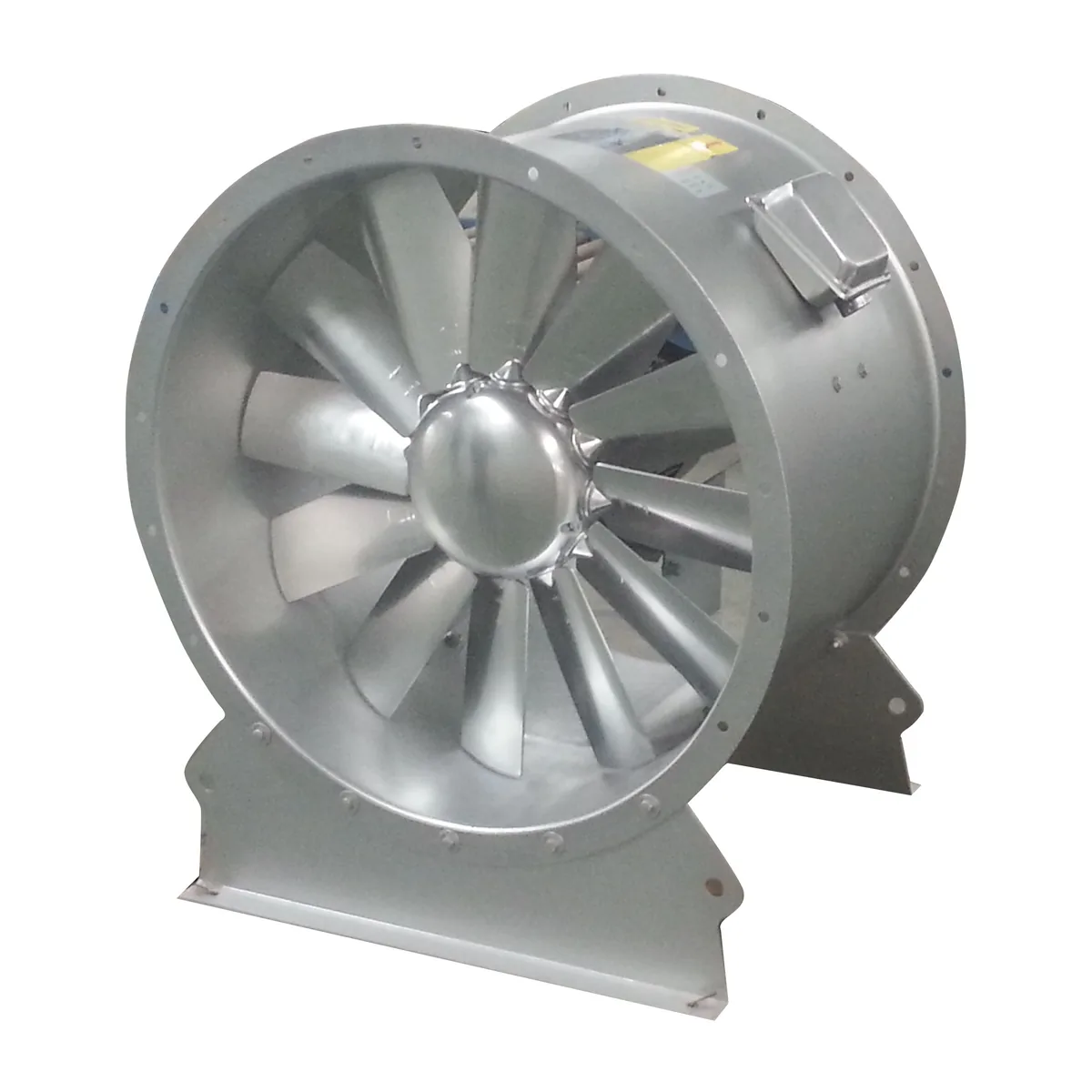

SINDFAN manufactures axial fans in Tianjin, China, and supplies a broad selection of industrial impellers and fan units. The SM series axial fans cover diameters from 250 mm up to 3150 mm and include the ADF, ADT, APD, ARD, ABE, ADB, and CAS variants. This range allows a customer to match the fan design—adjustable pitch, contra-rotating, duct-mounting, or panel-mounting—to the application rather than forcing a one-size-fits-all solution.

SINDFAN axial fans achieve efficiencies up to 80% and above, and the optional profiled front cone can add a further 8% efficiency by streamlining the inlet flow into the impeller. Each fan is dynamically balanced to ISO 1940-1 grade G4.0, and performance is verified in accordance with AMCA 210-07 and ISO 5801 test standards.

Conclusion

There is no universal answer to the question of axial vs centrifugal fan selection. Axial fans win where you need high flow at low-to-medium pressure, minimal footprint, and efficient direct-in-duct operation. Centrifugal fans win where system resistance demands higher pressure and space for a volute casing is acceptable. If you can define your required airflow and static pressure, the correct fan family becomes evident—and SINDFAN can supply the axial impeller or complete fan unit to meet it. We invite you to contact SINDFAN on WhatsApp at +852 9524 8434 or email info@sind-tech.com with your duty; we will help you confirm the right selection for your application.
